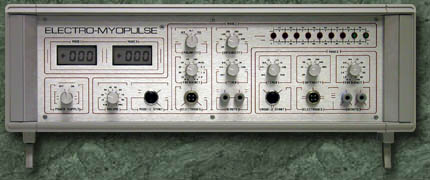

Electro-Myopulse 75L

The Electro-Myopulse 75L is the latest release of the most advanced technology
in pain control and injury trauma rehabilitation.
As all of Biomedical Design Instruments equipment, the instrument is an I/O
controlled device designed for precise treatment delivery required to control even
the most difficult pain, trauma and injury cases, including wide variety of
muscle and connective tissue problems.
Notable features departing from traditional controls is tissue controlled
automatic frequency adjustment mode in Channel1 and expanded current
and frequency in Channel2.
This unique combination allows practitioner to gain full treatment control from
patient screening and assesment to full resolution of therapy

Electro-Myopulse 75 L Specifications

MODE-1

Timer - 6, 8, 12, 16, 30 sec. & Continuous
Intensity Selections- 50, 100, 200, 300, 400 & 600 uA RMS
Output - Complex Wave Form at AC Setting -
   DC pulse train at Positive or Negative setting.
Pulse Width at AC setting:
    Modulating envelope - 4 second period full envelope
    Raise time 300 mSec.
    Fall time 300 mSec.
    Carrier wave - 50% duty cycle
    Voltage - Variable 1 to 60 Volt peak to peak
Pulse width at DC Setting:
     Pulse train - 50% duty cycle square wave.
     Raise time 300 mSec.,
     Fall Time 300 mSec.
     2 second period envelope
Frequency - Manual Select - 0.5, 1, 2, 4, 8, 10, 20, 30, 40, 60 & 100 Hz.
Frequency - AutoSet 0.5 to 60 Hz
Electrode Outputs- two sets of output
Manual Cycle Start Switch
LCD Display Meter- current stimulation level indicator
LED Bar Graph - Output Delivery Indicator

MODE 2

Timer - 6, 8, 12, 16, 30sec. 10 min & Cont.
Frequency - 0.5, 1.0, 2.0, 4.0, 6.0, 8.0, 10, 20, 40, 60, 80, 160 Hz.
Intensity - 25, 50, 100, 200, 400, 800uA RMS.
Output - Complex Wave Form
  Modulated Square Wave Envelope
  Frequency Modulated Pulse train with
  Alternating of Current Polarity each 2 Seconds.
Feedback indicators - LCD Current Meter.

OTHER CHARACTERISTICS

Power Supply - 24 VDC, fully rechargeable Lead-Acid batteries.
Charger Power ON And HI Charge LED
Dimensions - 19" long, 8" high, 16" deep
Net weight 22 lb.

INCLUDED ACCESSORIES

Operators Manual - Set of Placement Electrodes with leads
Trigger Electrode - Indifferent Electrode - Standard tip set(4)
Coil Cord (2)- Foot Plate Interface Bar - Charging Module
Solution
