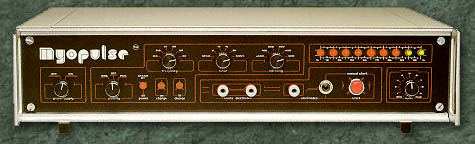

Electro-Myopulse 75C

Intelligent Micro-current Muscle Stimulator

Complex Wave Form at AC Setting, DC pulse train at
Positive or Negative setting
Pulse Width at AC setting: Modulating envelope -
4 second period full envelope
Raise time 300 mSec., Fall time 300 mSec.
Carrier wave - 50% duty cycle
Voltage - Variable 1 to 60 Volt peak to peak
Pulse width at DC Setting: Pulse train -
50% duty cycle square wave.
Raise time 300 mSec., Fall Time 300 mSec.
2 second period envelope
Frequency Selections- 0.3, 5, 10, 20, 30, 40Hz.
Intensity Selections- 50, 100, 200, 300, 400 & 600 uA RMS
Timer Selections- 6, 8, 12, 16, 30 sec. & Continuous.
Electrode Outputs- two sets of output
(1 control and 1 remote pair)
Manual Cycle Start Switch - activated from main panel or
trigger electrode
LED Bar Meter- 9 level current stimulation level indicator
Power Source: 32 VDC fully rechargeable lead acid batteries
Power cord for wall plug-in
Dimensions: 13" deep x 5" high x 19" wide
Net Weight: 25 pounds

Standard Accessories
Trigger probe, Non-trigger probe, Interface cylinder,
Hand-held bar, Large footplate, Standard set of ball tips,
Coil Cords, Cream Solution, Power Cord, Manual

Myo-75C Specifications
