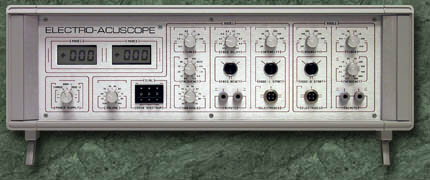

Electo-Acuscope-80L

The Electro-Acuscope 80L is the latest release of the most advanced technology
in pain control and injury trauma rehabilitation.
As all of Biomedical Design Instruments equipment, the instrument is an I/O
controlled device designed for precise treatment delivery required to control even
the most difficult pain, trauma and injury cases, including wide variety of
muscle and connective tissue problems.
Notable features departing from traditional controls is automatic frequency
conditionning adjustment modes in Channel1 and expanded current
and frequency in Channel2.
This unique combination allows practitioner to gain full treatment control from
patient screening and assesment to full resolution of therapy

Electro-Acuscope 80L Specifications

MODE 1

Power On - Switch Position-1
3 1/2 Digit LCD Electrode Contact Condition Display Monitor
  Display 0 to 100 Relative to Gain Spectrum
  Gain Spectrum - Range 000 to 999
  Range-000: 20K to 300K
  Range-999: 200K to 1 M
Output - Complex Wave Form Modulated Square Wave Envelope
  Carrier Wave 50% Duty Cycle no load.
  Frequency Modulated Pulse train with Alternating of
  Current Polarity each 1.5 Seconds.
Frequency - Manual Select - 0.5, 1.0, 2.0, 4.0, 8.0,10, 20, 40, 80, 160, 320Hz.
Frequency - AutoConditioning 1 Hz to 160 Hz
Auto-frequency Reset Sequence to Zero Reset
Auto-frequency Time Delay - 4.5 sec to 9 sec.
Intensity - 25, 50, 100, 200, 400, 600uA RMS.
Timer - 6, 8, 12, 16, 30sec. & Cont.
Audio Feedback - Audio Threshold - Volume Control - Loudspeaker
Lo Battery LCD Indicator
Lo Power Level Cut Off
Two Types of Electrode Output.
Treatment Activator Switch

MODE 2

Power On - Switch Position-2.
Timer - 6, 12, 30sec., 1.0, 10 min & Cont.
Frequency - 0.5, 1.0, 2.0, 4.0, 10, 20, 50, 100, 200, 400, 600, 800 Hz.
Intensity - 50, 100, 200, 300, 400, 600uA RMS.
Output - Complex Wave Form, Modulated Square Wave Envelope
Frequency Modulated Pulse train with
Alternating of Current Polarity each 2 Seconds.
Feedback indicators - LCD Current Meter

OTHER CHARACTERISTICS

Power Supply - 24 VDC, fully rechargeable Lead-Acid batteries.
Charger Power ON And HI Charge LED Indicator
Dimensions - 19" long, 8" high, 16" deep Net weight 22 lbs.
Net weight 22 lbs.

INCLUDED ACCESSORIES

Trigger Electrode - Indifferent Electrode - Standard tip set (set of 4)
Hand Bar - Set of 1x1 Placement Electrodes with leads
Coil Cord - Charging Module - Solution - Operators Manual
